MTL5021安全柵DO開關量
- MTL5021 SOLENOID/ ALARM DRIVER loop-powered, IIC The MTL5021 enables a device located in the hazardous area to be controlled by a switch in the safe area. The MTL5021 can drive a certified intrinsically safe low-power load, as well as
MTL5021 SOLENOID/
ALARM DRIVER
loop-powered, IIC

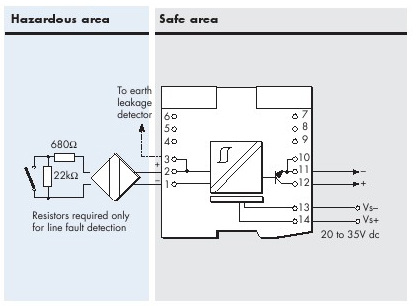

The MTL5021 enables a device located in the hazardous area to
be controlled by a switch in the safe area. The MTL5021 can drive
a certified intrinsically safe low-power load, as well as non-energy-
storing simple apparatus such as an LED. The unit’s input/output
isolation allows the control switch to be connected into either side of
the 24V dc supply circuit.
ALARM DRIVER
loop-powered, IIC
The MTL5021 enables a device located in the hazardous area to
be controlled by a switch in the safe area. The MTL5021 can drive
a certified intrinsically safe low-power load, as well as non-energy-
storing simple apparatus such as an LED. The unit’s input/output
isolation allows the control switch to be connected into either side of
the 24V dc supply circuit.

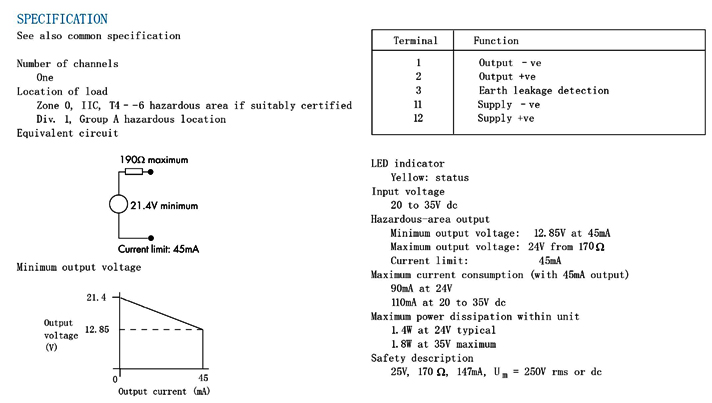

SPECIFICATION
See also common specification
Number of channelsOneLocation of load
Zone 0, IIC, T4–-6 hazardous area if suitably certified
Div. 1, Group A hazardous location Equivalent circuit
LED indicator
Yellow: status
Input voltage
20 to 35V dc
Hazardous-area output
Minimum output voltage: 12.85V at 45mA
Maximum output voltage: 24V from 170
Current limit: 45mA
Maximum current consumption (with 45mA output)
90mA at 24V
110mA at 20 to 35V dc
Maximum power dissipation within unit
1.4W at 24V typical
1.8W at 35V maximum
Safety description
25V, 170Ω 147mA, Um= 250V rms or dc
See also common specification
Number of channelsOneLocation of load
Zone 0, IIC, T4–-6 hazardous area if suitably certified
Div. 1, Group A hazardous location Equivalent circuit
LED indicator
Yellow: status
Input voltage
20 to 35V dc
Hazardous-area output
Minimum output voltage: 12.85V at 45mA
Maximum output voltage: 24V from 170
Current limit: 45mA
Maximum current consumption (with 45mA output)
90mA at 24V
110mA at 20 to 35V dc
Maximum power dissipation within unit
1.4W at 24V typical
1.8W at 35V maximum
Safety description
25V, 170Ω 147mA, Um= 250V rms or dc
