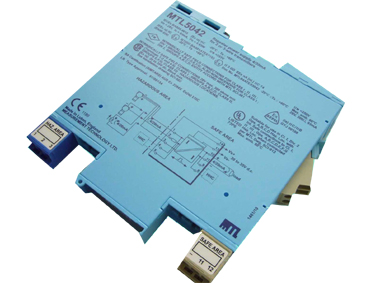

MTL5042 TEMPERATURE
CONVERTER
THC or RTD input
The MTL5042 converts a low-level dc signal from a temperature sensor
mounted in a hazardous area into a 4/20mA current for driving a
safe-area load. Software selectable features include linearisation,
ranging, monitoring, testing and tagging for eight thermocouple
types and 2-, 3- or 4-wire RTDs. For thermocouples requiring coldjunction compensation, the HAZ-CJC plug can be ordered with the
product, and includes an integral CJC sensor.
CONVERTER
THC or RTD input
The MTL5042 converts a low-level dc signal from a temperature sensor
mounted in a hazardous area into a 4/20mA current for driving a
safe-area load. Software selectable features include linearisation,
ranging, monitoring, testing and tagging for eight thermocouple
types and 2-, 3- or 4-wire RTDs. For thermocouples requiring coldjunction compensation, the HAZ-CJC plug can be ordered with the
product, and includes an integral CJC sensor.
LED indicator
Green: power indication
Supply voltage
20 to 35V dc
Maximum current consumption (with 20mA signal)
75mA at 24V
85mA at 20V
55mA at 35V
Maximum power dissipation within unit (with 20mA signal)
1.3W at 24V
Safety description
–75 to +75mV, or 0 to 400? (Input impedance 10M?)
Input signal span
3 to 150mV, or 10 to 400?
RTD excitation current
200µA nominal
Cold junction compensation
Automatic or selectable
Cold junction compensation error
≤1.0°C
Common mode rejection
120dB for 240V at 50Hz or 60Hz
Series mode rejection
40dB for 50Hz or 60Hz
Calibration accuracy (at 20°C)
(includes hysteresis, non-linearity and repeatability)
Inputs:
mV/THC: ±15µV or ±0.05% of input value
(whichever is greater)
RTD: ±80m?
Output: ±11µA
Temperature drift (typical)
Inputs:
mV/THC: ±0.003% of input value/°C
RTD: ±7m?/°C
Output: ±0.6µA/°C
Example of calibration accuracy and temperature drift
(RTD input)
Span: 250?
Accuracy: ± (0.08/250 + 11/16000) x 100%
=0.1% of span
Temperature drift: ± (0.007/250 x 16000 + 0.6) µA/°C
= ±1.0µA/°C
Safety drive on sensor burnout
Upscale, downscale, or off
Output range
4 to 20mA nominal (direct or reverse)
Maximum load resistance
600?
LED indicator
Green: one provided for power and status indication
Power requirement, Vs with 20mA signal
68mA at 24V
82mA at 20V
52mA at 35V
Power dissipation within unit with 20mA signal
1.5W at 24V
1.6W at 35V
Green: power indication
Supply voltage
20 to 35V dc
Maximum current consumption (with 20mA signal)
75mA at 24V
85mA at 20V
55mA at 35V
Maximum power dissipation within unit (with 20mA signal)
1.3W at 24V
Safety description
–75 to +75mV, or 0 to 400? (Input impedance 10M?)
Input signal span
3 to 150mV, or 10 to 400?
RTD excitation current
200µA nominal
Cold junction compensation
Automatic or selectable
Cold junction compensation error
≤1.0°C
Common mode rejection
120dB for 240V at 50Hz or 60Hz
Series mode rejection
40dB for 50Hz or 60Hz
Calibration accuracy (at 20°C)
(includes hysteresis, non-linearity and repeatability)
Inputs:
mV/THC: ±15µV or ±0.05% of input value
(whichever is greater)
RTD: ±80m?
Output: ±11µA
Temperature drift (typical)
Inputs:
mV/THC: ±0.003% of input value/°C
RTD: ±7m?/°C
Output: ±0.6µA/°C
Example of calibration accuracy and temperature drift
(RTD input)
Span: 250?
Accuracy: ± (0.08/250 + 11/16000) x 100%
=0.1% of span
Temperature drift: ± (0.007/250 x 16000 + 0.6) µA/°C
= ±1.0µA/°C
Safety drive on sensor burnout
Upscale, downscale, or off
Output range
4 to 20mA nominal (direct or reverse)
Maximum load resistance
600?
LED indicator
Green: one provided for power and status indication
Power requirement, Vs with 20mA signal
68mA at 24V
82mA at 20V
52mA at 35V
Power dissipation within unit with 20mA signal
1.5W at 24V
1.6W at 35V
安全柵應安裝在非危險場所。
安全柵通往現場(危險場所)的軟銅導線截面積必須大于0.5mm²。
連接導線的絕緣強度大于500V。
安全柵本安端(有藍色標記)和非本安端電路配線，不得接錯和混淆。本安導線宜選用藍色作為本安標記。本安導線和非本安導線在匯線槽中應分開鋪設，采用各自保護套管。安全柵的本安
側，不允許混淆有其它電源，包括其它本安電路的電源。
安全柵與一次儀表組成本安安全防爆系統時，必須經國家指定的防爆檢驗機構檢驗認可。PH系列安全柵安全柵由國家防爆電氣監督檢驗中心，給出的Co，Lo分布參數是相對與ⅡC級(氫氣級)
的最大允許值對于ⅡB級環境可把該參數乘以3，對于ⅡA級環境可把該參數乘以8。傳輸線選用不同規格的電纜時，其本身的電纜參數應予高度重視，不得超過規定值。
對安全柵進行單獨通電調試時，必須注意安全柵的型號、電源極性、電壓等級及安全柵外殼接線端上的標號。
嚴禁用兆歐表測試隔離安全柵端子之間的絕緣性。若要檢查系統線路絕緣性時，應先斷開全部安全柵接線，否則會引起內部器件損壞。
SPECIFICATION
See also common specification
Number of channels
One
Signal source
Types J, K, T, E, R, S, B or N THCs to BS 4937
EMF input
2/3/4-wire platinum RTDs to BS 1904/DIN43760 (100? at 0°C)
Location of signal source
Zone 0, IIC, T4 hazardous area
Div.1, Group A, hazardous location
Input signal range
Safety description
Terminals 2 to 1 and 3:
28V, 300Ω, 93mA; Um = 250V rms or dc
Terminals 1 to 3:
Non-energy-storing apparatus ≤1.2V, ≤0.1A, ≤20µJ and ≤25mW;
can be connected without further certification into any IS loop
with an open-circuit voltage <28V
Note: Terminals 1 and 3 only support HART® communications in one direction
from field device to safe-area connections 11 and 12
See also common specification
Number of channels
One
Signal source
Types J, K, T, E, R, S, B or N THCs to BS 4937
EMF input
2/3/4-wire platinum RTDs to BS 1904/DIN43760 (100? at 0°C)
Location of signal source
Zone 0, IIC, T4 hazardous area
Div.1, Group A, hazardous location
Input signal range
Safety description
Terminals 2 to 1 and 3:
28V, 300Ω, 93mA; Um = 250V rms or dc
Terminals 1 to 3:
Non-energy-storing apparatus ≤1.2V, ≤0.1A, ≤20µJ and ≤25mW;
can be connected without further certification into any IS loop
with an open-circuit voltage <28V
Note: Terminals 1 and 3 only support HART® communications in one direction
from field device to safe-area connections 11 and 12
